Thermal stable polycrystalline diamond(TSP) is a kind of diamond polymer formed by sintering diamond and binder under high temperature and extremely high pressure. Synthetic polycrystalline diamond has the characteristics of high wear resistance, high thermal stability and dense and uniform structure, and is widely used in oil&gas drill bits, geological drill bits, diamond processing and mechanical processing tools, etc.

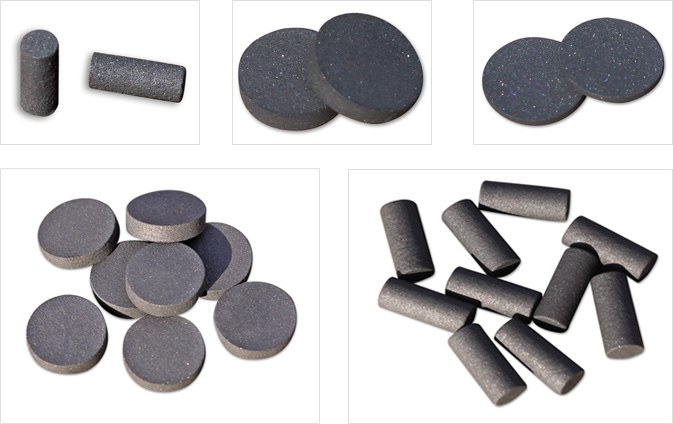

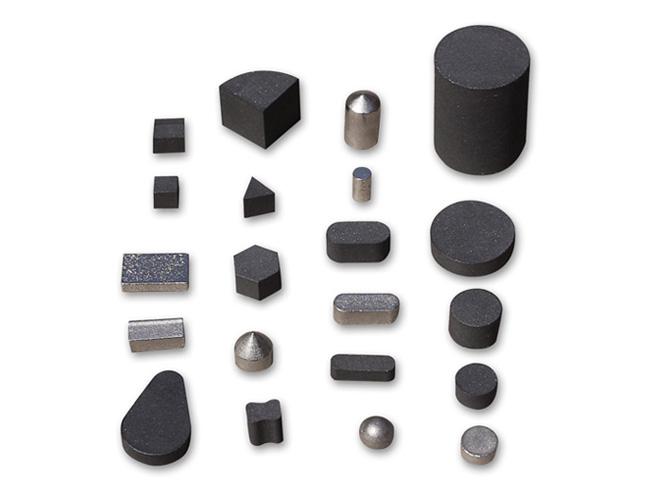

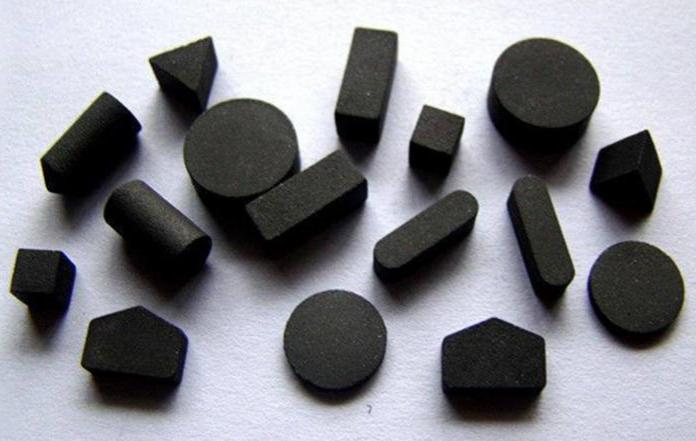

Thermal Stable Polycrystalline diamond (TSP) can be manufactured into a variety of sizes and shapes (Cylinders, Conical,Squares, Triangles, etc.)

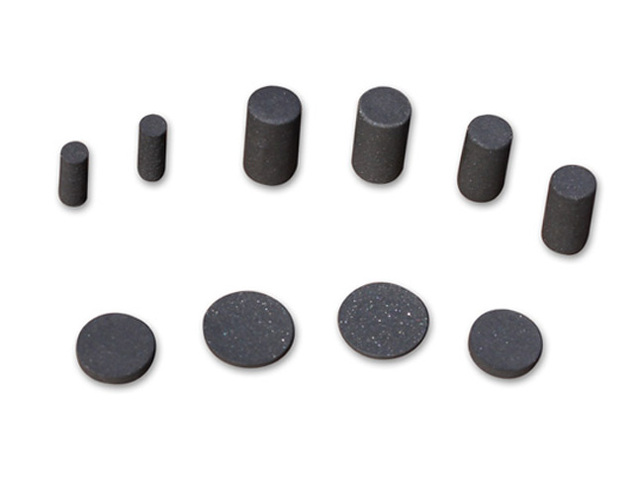

Cylinder Series	D(diameter) mm	H(height) mm
	1 - 7	2 - 5
	5 - 10	2 - 10
	8 - 15	8 - 15

Cone Series	D(diameter) mm	H(height) mm	A(angle)
	2 - 4	4 - 5	90 - 120
	4 - 6	4 - 6	90 - 120
	6 - 10	6 - 10	60 - 120
	8 - 10	8 - 15	60 - 120

Cube Series	L(length) mm	W(width) mm	H(height) mm
	1 - 5	1 - 5	1 - 5
	1.5- 3	1.5- 3	2 - 7
	3 - 5	3 - 5	3 - 8
	5 -10	5 -10	3 -10

	Triangle Series	L(length) mm	W(width) mm	T(thickness) mm
		4 - 5	4 - 7	1 - 5
		4 -10	4 - 8	3 - 8

Special Series	W (width) mm	H (height) mm	L(length) mm	r(radius) mm
	5 - 10	3	3 - 3.2	1.5 -1.6
